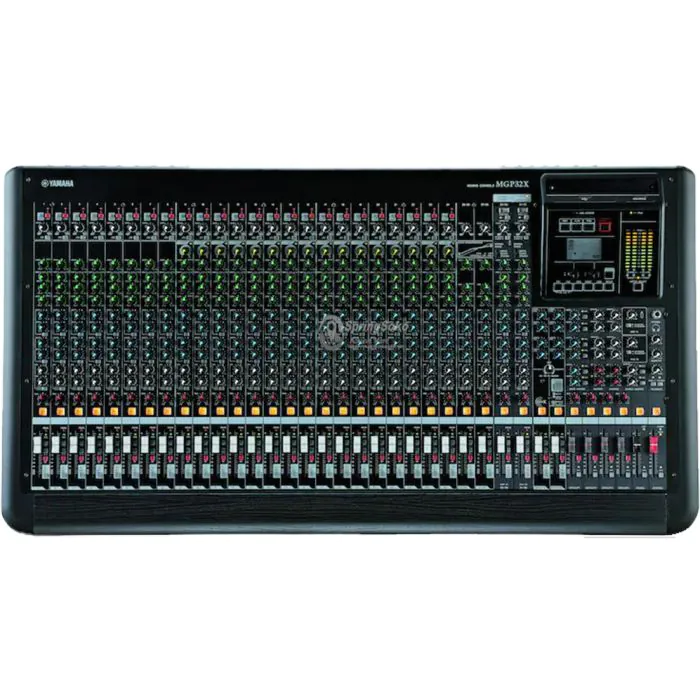

Yamaha Mixing Console 32 Channel MGP32X

Mixing capability

Mixing channels

32 Line Inputs (24 mono and 4 stereo)

GROUP

4 GROUP Buses + ST Bus

AUX

6 AUX Sends + 2 FX Sends

MATRIX

1 Matrix out

On-board processors

FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

Input channel functions

-

I/O

Mic inputs

MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)

Phantom power

48V phantom power per channel

Line inputs

LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo

Digital I/O

USB Device, iPod / iPhone

Total harmonic distortion

0.02% (20Hz-20kHz@ +14dBu)

Frequency response

+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz

Hum & noise level

Equivalent input noise

-128 dBu Equivalent Input Noise

Residual output noise

-94 dBu Residual Output Noise

Crosstalk

-74dB @ 1kHz

Power requirements

100-240V 50Hz/60Hz

Power consumption

86W max

Dimensions

W

1,027mm (40.4")

H

169mm (6.7")

D

565mm (22.2")

Net weight

19kg (41.9lb)
